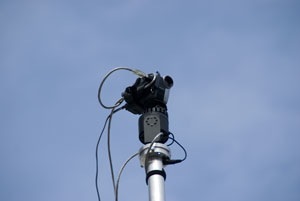

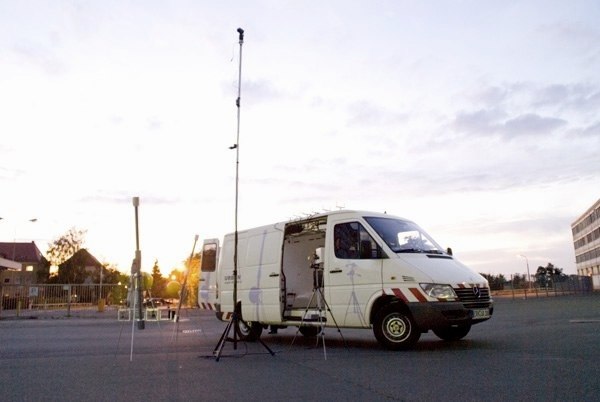

Camera
The 16ft-Overhead-Camera films the traffic action. The video is synchronized to the recorded audio.

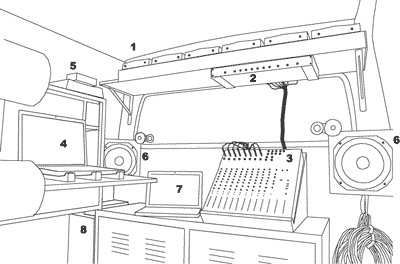

1 radio transmission (receivers)
2 interface
3 mixer
4 computer for audio processing
5 amplifier
6 monitor speakers
7 computer for video processing
8 energy supply

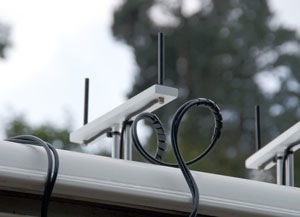

radio-transmission
The audio-signal of the instruments is transmitted to the recording studio via radio transmission.
This guarantees a wide operative area of the instruments.

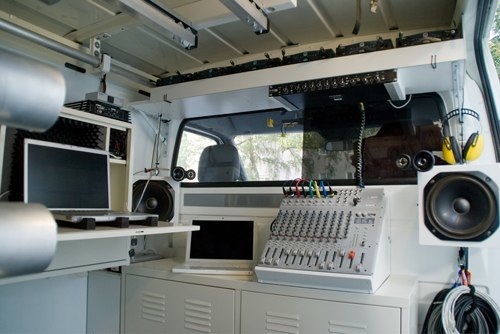

recording studio
The recording studio consists of the necessary equipment for video and audio recording. Further there are 8 headphones for visitors to listen live to the sonic transformation.
radio transmitter

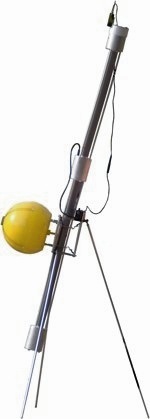

instruments

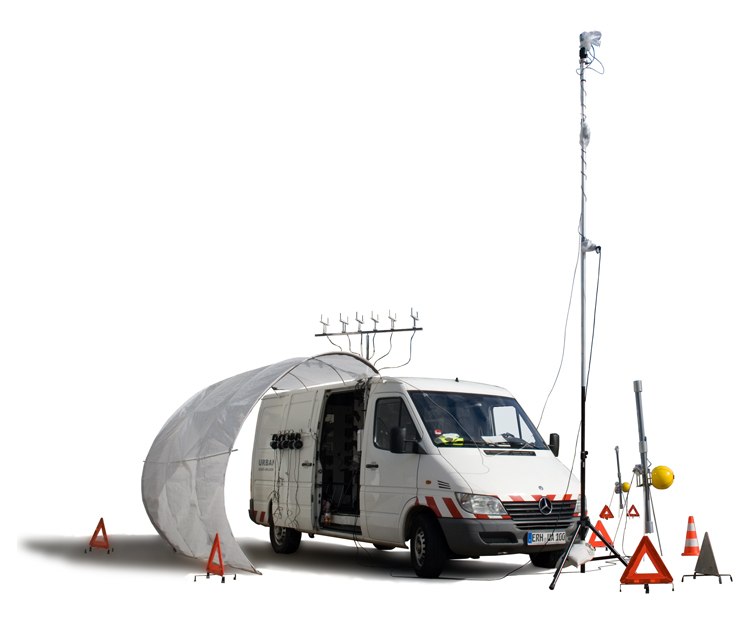

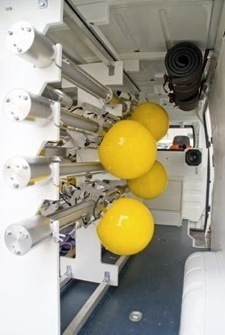

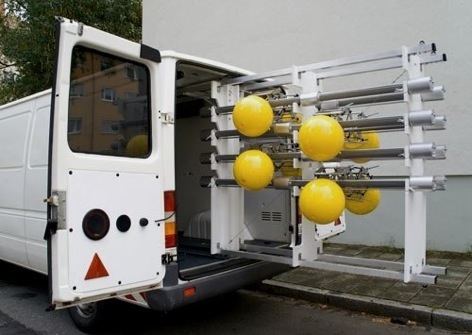

The 8 instruments are stored in a rack in the back of the van. For an operation they can each be taken out and placed in a radius of about 160 ft around the van (radius of the radio transmission).
